Double Girder EOT Crane

Backed by rich industry experience, we are engaged in offering an excellent range of Double Girder Crane. Ideal for wide ranging applications in industries, these products are acknowledged for their reliable performance, robust construction and yet economical. To meet the expectations of our customers, we have made available our range in numerous specifications as laid down by our patrons.

Feature:

Main Girders:
- Manufactured from IS-2062 plates in form of box section adequately stiffened with the form of a box section, adequately stiffened with diaphragms to take care of the bending and torsional loadings during the operation of the crane with adequate factor of safely in compliance to IS-3177/807.
End Carriages :
- Developed from rolled channel sections adequately stiffened with diaphragms and bearing plates to receive the main girders.
- Provided with suitable buffer, scraper plate and jacking pads for easy removed of LT wheels during the maintenance operation.
Hoisting Machinery:
- The hosting machinery shall comprise of crane duty induction motor.
- Rotary geared limit switch is coupled with the rope drum shaft to monitor maximum and minimum levels of the crane hook.
Crab Frame:
- Manufactured from rolled steel section adequately stiffened to withstand the impact loads and structural forces during the lifting and traverse of the load.
- Provided with buffers and sweeper plates as essential feature while in operation.
Cross Travel Machinery:
- Consist of centrally located crane duty induction motor coupled to the input shaft of the vertical gear box by means of flexible brake drum coupling.
- Coupled to the CT wheels by means of flexible geared coupling is mounted on the floating shafts.
Long Travel Machinery:
- Driven either through a centrally located crane duty induction motor coupled to LT wheels through totally enclosed oil lubricated helical gear box or through totally enclosed oil lubricated helical box or through a twin drive arrangement driving a sets of wheels at two ends.
Gear Boxes:
- Developed out of tested plates and stress relieved all gear boxes that are totally enclosed and oil lubricated in an enclosed.
- Made from C-55 Mn 75 alloy steel and is computed as per IS 4460.
Platform:
- Full checkered platform shall be provided on the drive side of the girder throughout the span of the crane.

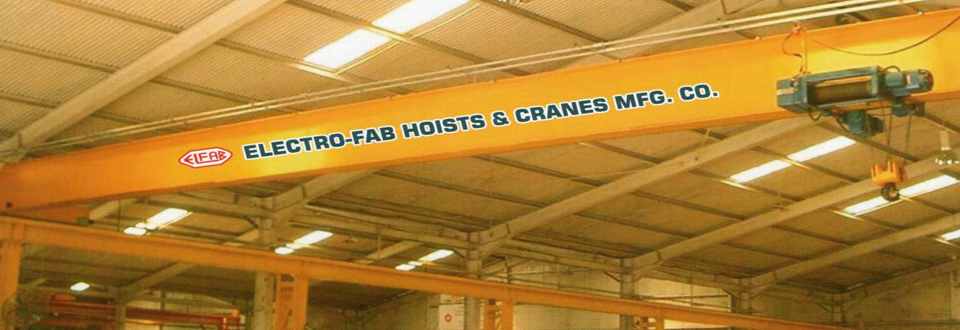

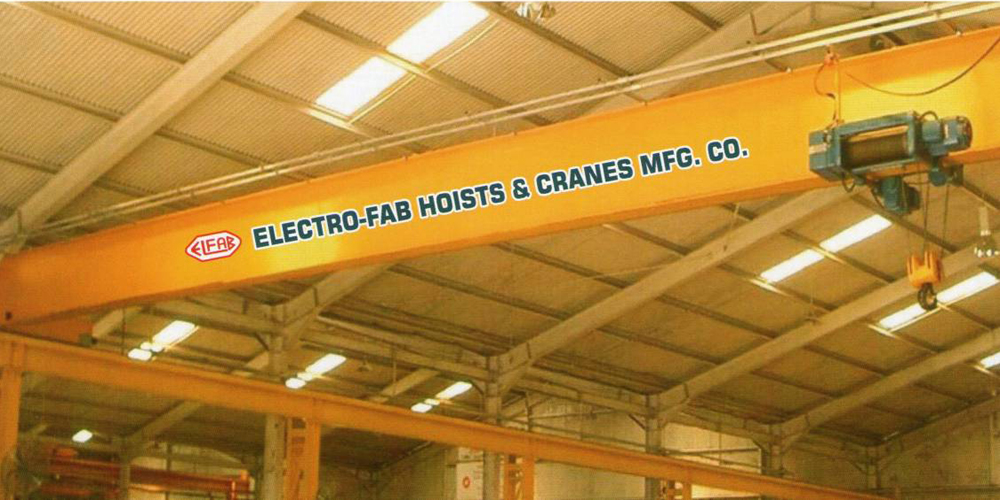

Single Girder EOT Crane

Our customers can buy from us a wide range of Single Girder Crane. These offered products are manufactured and developed following the international quality norms and standard using high quality raw material that are obtained from the reliable sources of the market, which is used in the manufacturing process.

Constructional Feature:

Main Girder :
- Manufactured from IS 2062 quality plates in the form of a box section designed to avoid any lateral bending and buckling or during lowering of the load.
- Stiffened with diaphragms to take care of the bending and tensional loading during the operation crane.
- Designed with adequate factor of safety in compliance to IS 3177/807.
End Carriages :
- Provided with suitable buffers, scraper plates and jacking pads for easy removal of LT wheels during the maintenance operation
Hoisting & Cross Travel Machinery :
- Provided for controlling the top and the bottom position of the hook.
- Ensure the prevention of overlapping the wire rope apart from the required tension.
- Complete with a motor driven trolley along with the mechanical disc brake, conical in construction.
Long Travel Machinery :
- Manufactured out of tested plates and shall be stress relieved.
- Internal gears and pinions are manufactured from alloy steel as per IS 4460 housed in totally enclosed oil lubricated housed in totally enclosed oil lubricated housing.
- The gear boxes shall be horizontal foot mounted type and are supported in anti friction bearing for mounted type.
